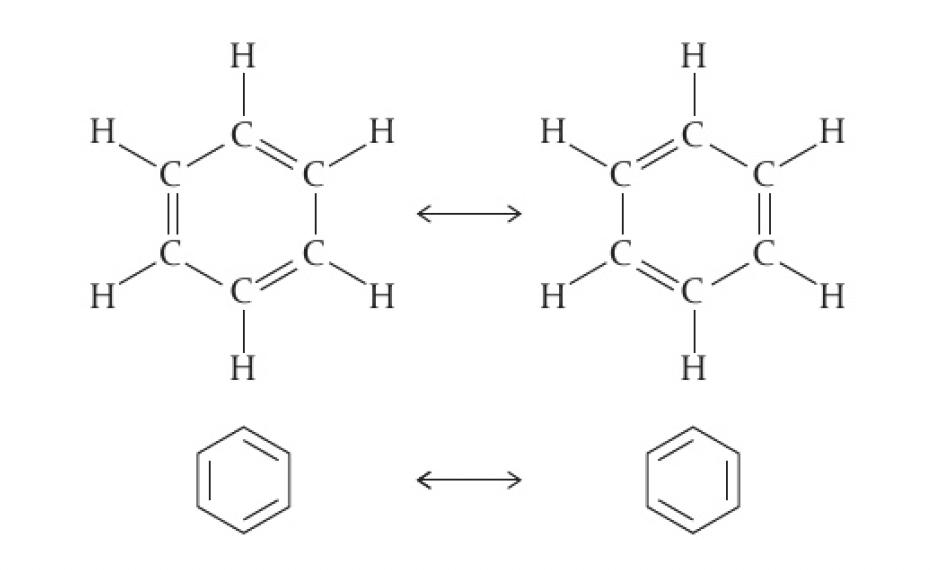

Structure 2.2.12 - benzene,
- 6 carbon atoms in a hexagonal ring
- triangular planar arrangement with 120
bond angles

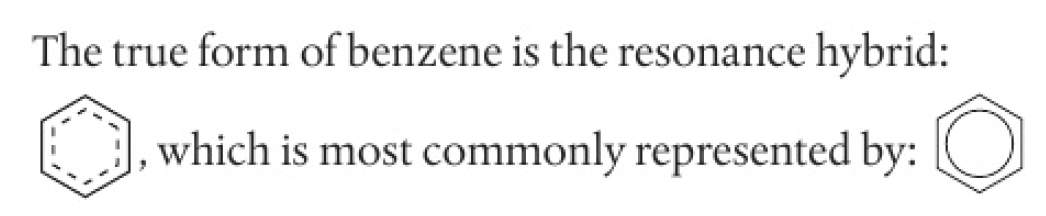

the circle in the middle represents delocalised electrons, which are spread equally through the ring

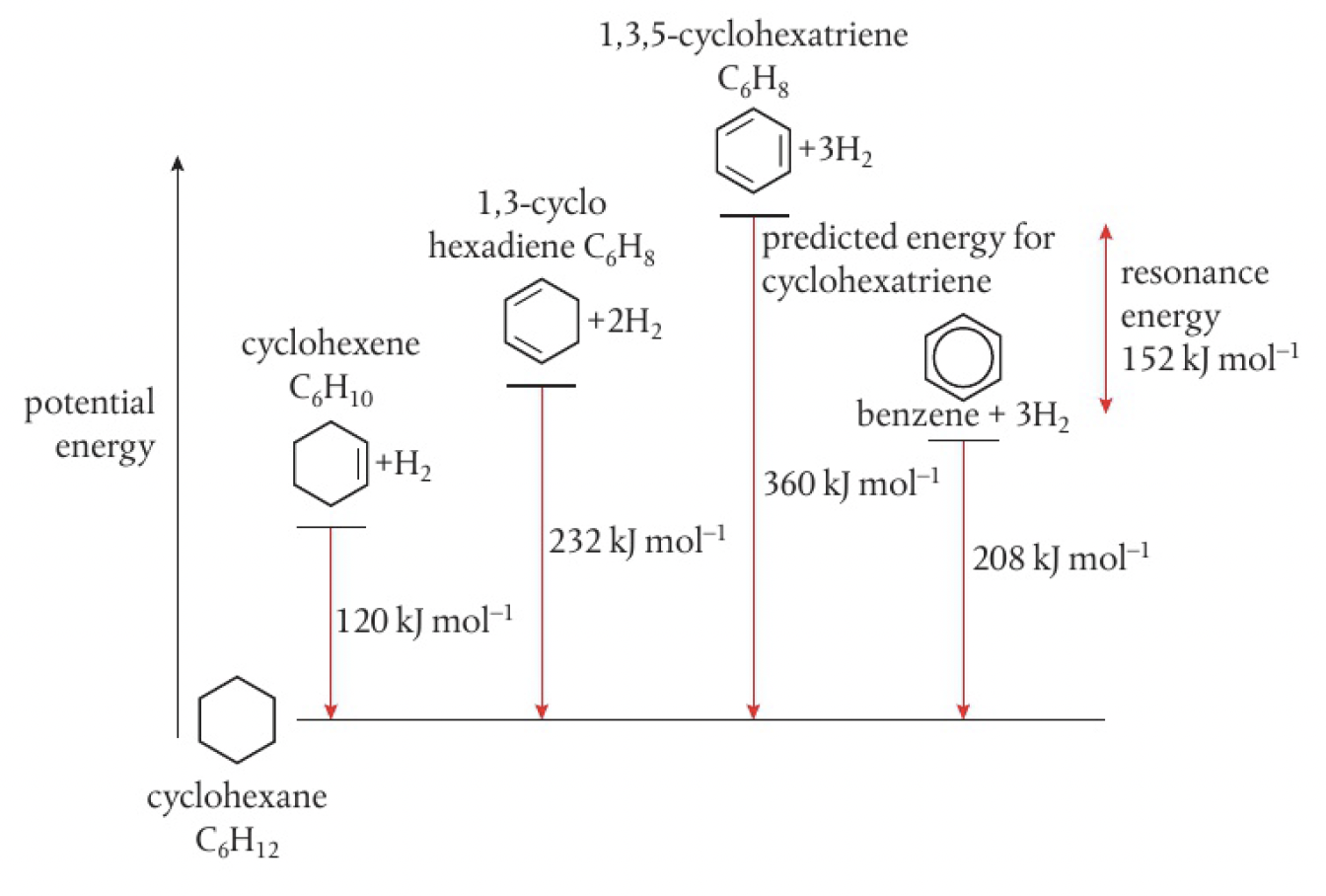

evidence for the accepted structure of benzene

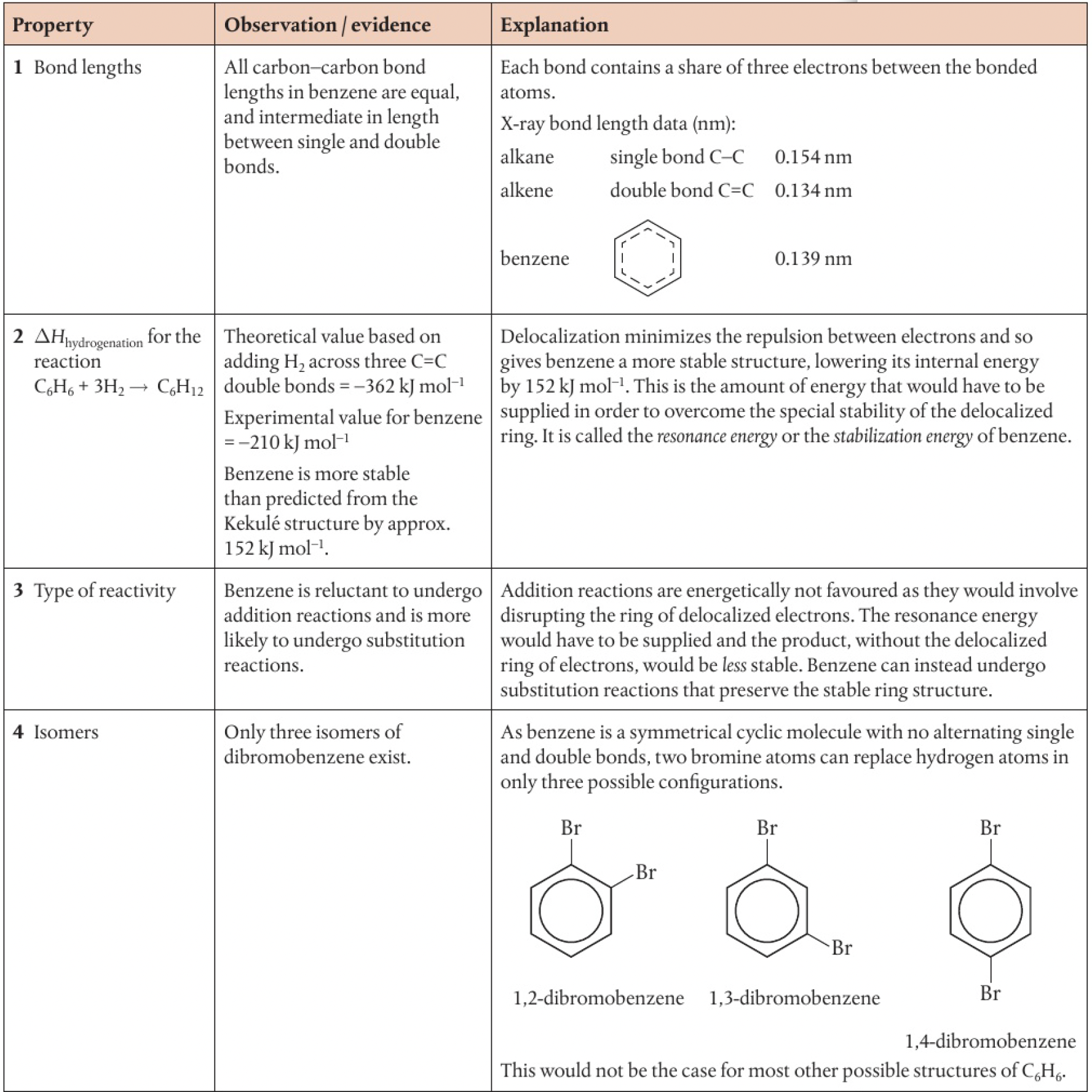

benzene’s structure can be explained through a combination of physical and chemical properties
