3.2.10 and 3.2.11 nuclear magnetic resonance (NMR) spectroscopy (HL)

5 min read

chem classificationsofmatter

Structure 3.2.10 - proton nuclear magnetic resonance () spectroscopy gives information on the different chemical environments of hydrogen atoms in a molecule
Structure 3.2.11 - individual signals can be split into clusters of peaks

singlets, doublets, triplets, quartets

reading

NMR spectroscopy depends on the nuclear spin of atoms with an odd number of nucleons, which act as tiny bar magnets. when placed in an external magnetic field, the nuclei exist in 2 distinct energy levels depending on whether their magnetic field is aligned with or opposed to the external magnetic field. the energy gap between the energy levels is very small and only requires the absorption of low energy radio waves for the nuclei to move from the lower energy state to the higher energy state.

since electrons shield the nucleus from the full effect of the external magnetic field, differences in electron distribution produce different energy separations between the two spin energy levels. nuclei in different chemical environments produce different signals

H NMR gives information about the position of hydrogen atoms or protons in a molecule

MRI is an application of NMR as hydrogen atoms have a magnetic moment due to the odd number of nucleons, and hydrogen atoms are present in water, which makes up about 70% of the body by mass

NMR spectroscopy

each NMR spectrum gives 4 pieces of information

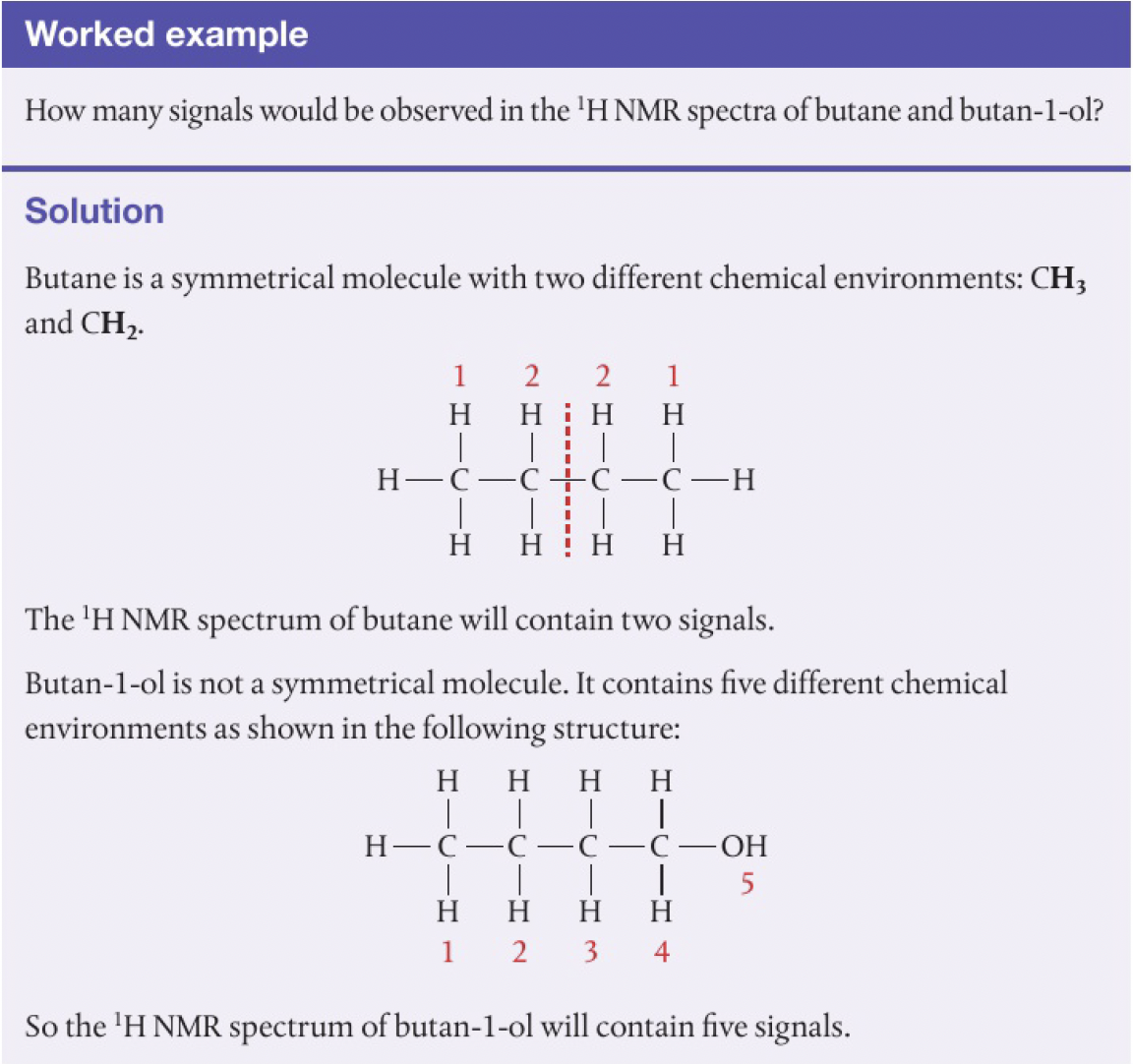

  1. the number of signals in the spectrum
    hydrogen nuclei that have the same chemical environment are said to be equivalent, and give the same signal in the NMR spectrum. the number of signals observed depends on the number of different chemical environments.

equivalent hydrogens can be identified by looking at the symmetry of the structure.

  1. the position or chemical shift of each signal
    chemical shift is the position of the x-axis. in an alcohol, the closer the hydrogen atoms are to the OH group, the higher the chemical shift observed. this happens because the high electronegativity of the oxygen atom pulls electrons away from the hydrogen atoms, causing the nuclei to be deshielded, making the nuclei more susceptible to the effects of the external magnetic field, and their signals occurring at a higher chemical shift.

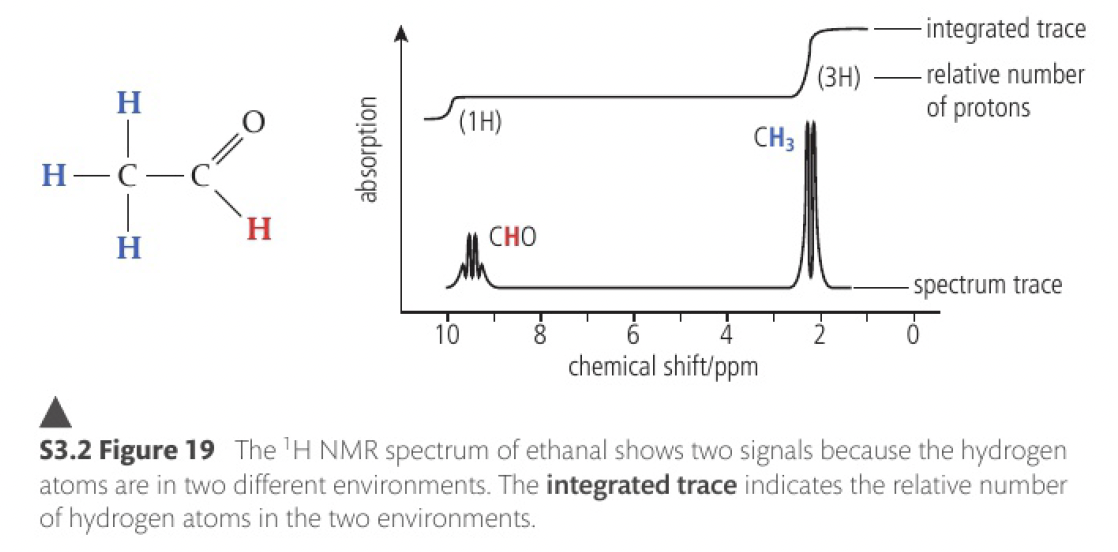

  2. the size or integrated area of each signal
    the area under a signal depends on the number of hydrogen atoms in the chemical environment.

the relative intensity relates to its integrated area and is proportional to the number of hydrogen atoms in that chemical environment

  1. the splitting pattern observed for each signal

splitting occurs as the effective magnetic field is modified by the magnetic field produced by neighbouring protons.

this is known as spin-spin coupling

if there are n hydrogens on the neighbouring carbons, there will be n + 1 lines observed in the splitting pattern

the intensity of lines follows Pascal’s triangle

  • protons bonded to the same atom do not interact with one another since they are equivalent and behave as a group
  • protons on carbon atoms not adjacent to each other do not generally interact as they are too far apart for their magnetic fields to interact through spin-spin coupling
  • alcohol protons typically do not engage in spin-spin coupling, so appear as singlets and do not split the signals of other protons

non-ib

nuclear magnetic resonance is nuclei specific spectroscopy, using a large magnet to probe the intrinsic spin properties of atomic nuclei.

as with all forms of spectroscopy, NMR uses electromagnetic radiation - radio frequency waves - to promote transitions between nuclear energy levels.

when magnetic nuclei, such as and were placed in a magnetic field of a strength specific to the nucleus, they were able to absorb radio frequency energy

  • upon absorption, the nuclei begin to resonate
  • different atoms within a molecule resonate at different frequencies

NMR works because of:

  • nuclear spin
    • up or down
    • can be with or against magnetic field
      • against is higher energy, lower is with field

nuclear spin in NMR:

  • like electrons, the spin can be described by quantum numbers of for the spin and for the spin in a magnetic field
  • atomic nuclei with even numbers of protons and neutrons have zero spin
  • all other atoms with odd numbers have a non-zero spin
  • all molecules with a non-zero spin have a magnetic moment, ,

the magnetic moment is vector quantity, with magnitude and direction, measuring the object’s tendency to align with a magnetic field

  • the magnetic moment of the nucleus makes the nucleus behave like a small bar magnet
  • in the absence of an external magnetic field, each magnet is randomly oriented

during NMR, the sample is placed in an external magnetic field, , which forces the bar magnets to align with or against the

when a spin flip of the magnet occurs

  • an exact quanta of energy is required
  • just like in the atomic emission spectrum

nuclear energy levels:
for any (spin in a magnetic field)

chemical shift:

  • depends on extent of shielding of nucleus

  • high when not shielded

  • low when experiencing shielding effect

  • highly electronegative atoms draw the electrons away, deshielding the nucleus

  • if there are lots of electrons, the nucleus is highly shielded and

c(c([H])([H])([H]))(c([H])([H])([H]))(c([H])([H])([H]))(c([H])([H])([H]))
